Stainless steel flange is a common component for connecting pipes, which is widely used in chemical, petroleum, pharmaceutical, food and other fields. It can connect two pipes and play a sealing role. Stainless steel flange has the characteristics of simple construction, easy use and reliable sealing, so it is widely used in various industrial fields.
Product Parameters
|
Product name |
Stainless steel pipe flange |
|
Standard |
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME |
|
Material |
SS304L, SS316L, SS304, SS201 ect. |
|
Certification: |
ISO9001,ISO14001,ISO45001 |
|
Connection type |
Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female,Large tongue groove, Small tongue groove etc |
|
Woking pressure: |
≤1.6 Mpa |
|
Temperature Range: |
-10degree to +150degree |
|
Tolerance: |
± 1% |
|
Design: |
OEM & ODM |
|
Thickness |
SCH5-SCH160 |
|
Size |
1/2' ~ 48' |
|
Type |
Butt Welded |
|
Surface Treatment: |
Pickled surface/Ground polished surface |
|
Application |
It is usually used in constructions,petroleum, chemical industry, power, ship building, paper making, metallurgy, water supply and sewage work, light and heavy industry, plumbing and electric etc. |
|
Package |
Standard export wooden case or as you requested |
Product Specifications
|
Steel Flanges EN1092/ISO7005 |
||||||||
|
Pipe Size |
DN |
PN |
OD |
PCD |
ID |
Bolt No. |
Bolt Hole Dia |
Thickness |
|
50 |
40 |
16 |
150 |
110 |
55 |
4 |
18 |
18 |
|
63 |
50 |
16 |
165 |
125 |
68 |
4 |
18 |
20 |
|
75 |
65 |
16 |
185 |
145 |
80 |
4 |
18 |
20 |
|
90 |
80 |
16 |
200 |
160 |
95 |
8 |
18 |
20 |
|
110 |
100 |
16 |
220 |
180 |
116 |
8 |
18 |
22 |
|
125 |
125 |
16 |
250 |
210 |
130 |
8 |
18 |
22 |
|
140 |
125 |
16 |
250 |
210 |
150 |
8 |
18 |
22 |
|
160 |
150 |
16 |
285 |
240 |
170 |
8 |
22 |
24 |
|
180 |
150 |
16 |
285 |
240 |
188 |
8 |
22 |
24 |
|
200 |
200 |
16 |
340 |
295 |
210 |
12 |
22 |
26 |
|
225 |
200 |
16 |
340 |
295 |
235 |
12 |
22 |
26 |
|
250 |
250 |
16 |
405 |
355 |
265 |
12 |
26 |
29 |
|
280 |
250 |
16 |
405 |
355 |
290 |
12 |
26 |
29 |
|
315 |
300 |
16 |
460 |
410 |
335 |
12 |
26 |
32 |
|
355 |
350 |
16 |
520 |
470 |
365 |
16 |
26 |
35 |
|
400 |
400 |
16 |
580 |
525 |
420 |
16 |
30 |
38 |
|
450 |
450 |
16 |
640 |
585 |
470 |
20 |
30 |
42 |
|
500 |
500 |
16 |
715 |
650 |
520 |
20 |
33 |
46 |
|
560 |
600 |
16 |
840 |
770 |
575 |
20 |
36 |
55 |
|
630 |
600 |
16 |
840 |
770 |
650 |
20 |
36 |
55 |
|
710 |
700 |
16 |
910 |
840 |
740 |
24 |
36 |
63 |
|
800 |
800 |
16 |
1025 |
950 |
830 |
24 |
39 |
74 |
|
Steel Backing Ring ANSI B16.5 |
|||||||
|
Pipe Size |
DN |
OD |
PCD |
ID |
Bolt No. |
Bolt Hole Dia |
Thickness |
|
50 |
1 1/2″ |
127 |
98.6 |
63 |
4 |
16 |
17.5 |
|
63 |
2″ |
152 |
120.5 |
68 |
4 |
20 |
19.5 |
|
75 |
2 1/2″ |
178 |
139.5 |
80 |
4 |
20 |
22.5 |
|
90 |
3″ |
190 |
152.5 |
95 |
4 |
20 |
24 |
|
110 |
4″ |
229 |
190.5 |
116 |
8 |
20 |
24 |
|
125 |
5″ |
254 |
216 |
130 |
8 |
22 |
24 |
|
140 |
5″ |
254 |
216 |
150 |
8 |
22 |
24 |
|
160 |
6″ |
279 |
241.5 |
170 |
8 |
22 |
25.5 |
|
180 |
6″ |
279 |
241.5 |
188 |
8 |
22 |
25.5 |
|
200 |
8″ |
343 |
298.5 |
210 |
8 |
22 |
29 |
|
225 |
8″ |
343 |
298.5 |
235 |
8 |
22 |
29 |
|
250 |
10″ |
406 |
362 |
265 |
12 |
26 |
30.5 |
|
280 |
10″ |
406 |
362 |
290 |
12 |
26 |
30.5 |
|
315 |
12″ |
483 |
432 |
335 |
12 |
30 |
32 |
|
355 |
14″ |
533 |
476 |
365 |
12 |
26 |
35 |
|
400 |
16″ |
597 |
540 |
420 |
16 |
30 |
37 |
|
450 |
18″ |
635 |
578 |
470 |
16 |
33 |
40 |
|
500 |
20″ |
698 |
635 |
520 |
20 |
33 |
43 |
|
560 |
24″ |
813 |
749.5 |
575 |
20 |
36 |
48 |
|
630 |
24″ |
813 |
749.5 |
650 |
20 |
36 |
48 |
|
710 |
28″ |
927.1 |
863.6 |
740 |
28 |
35 |
52.4 |
|
800 |
32″ |
1060.4 |
977.9 |
830 |
28 |
41 |
57.1 |
|

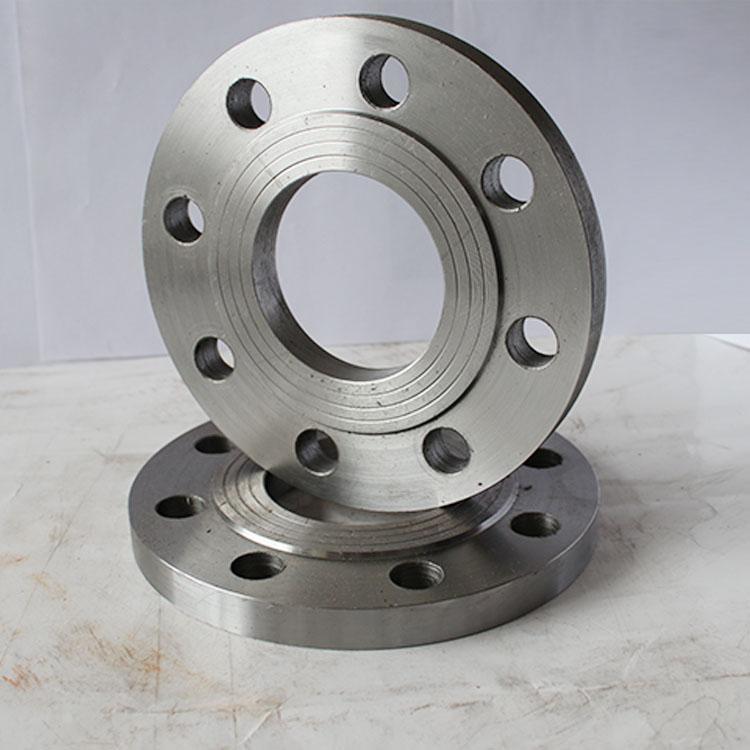

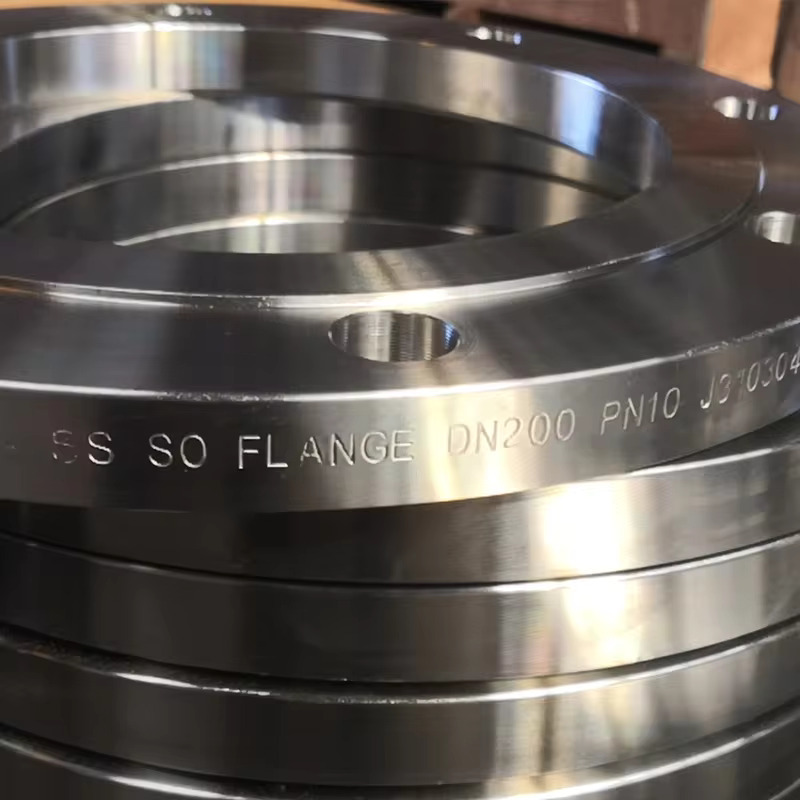

Product Details |

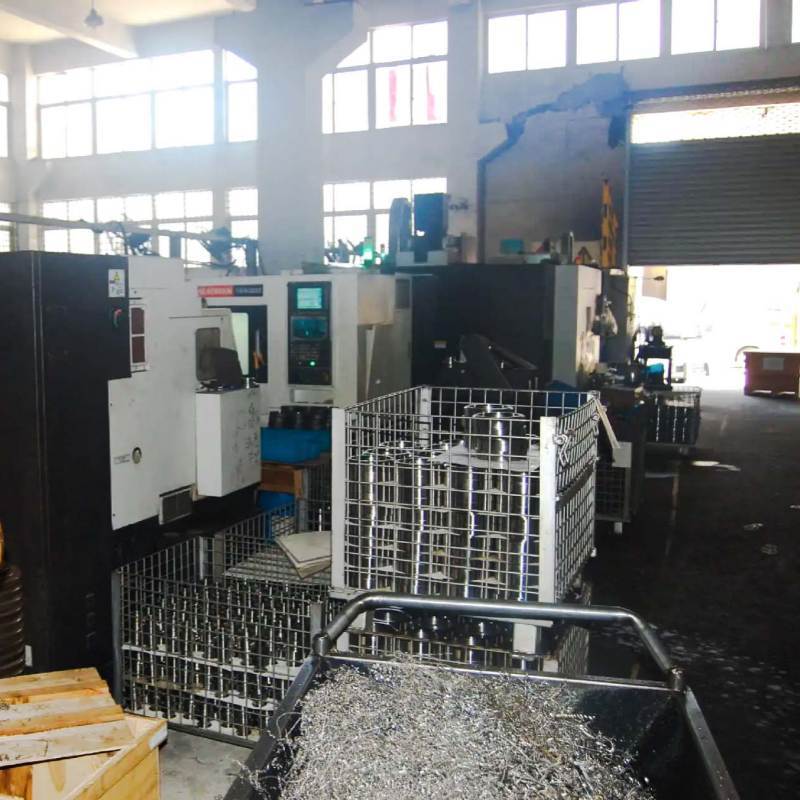

Product Production |

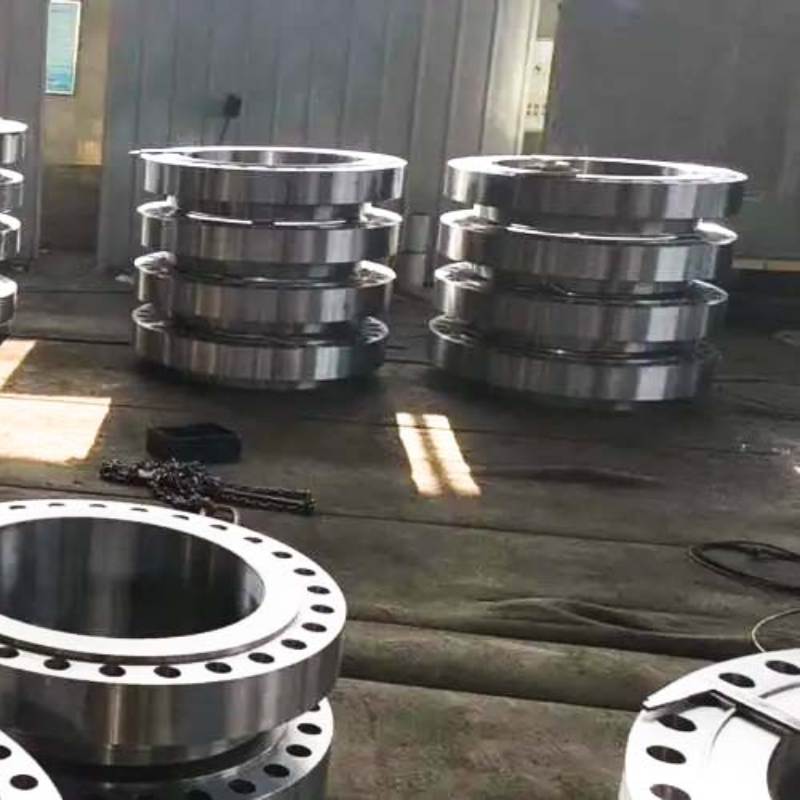

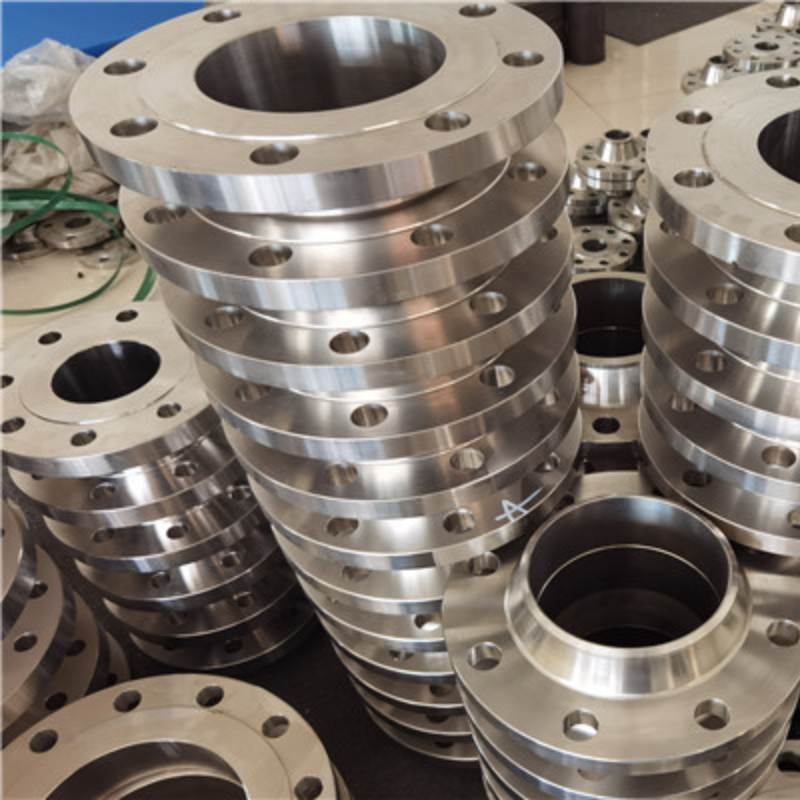

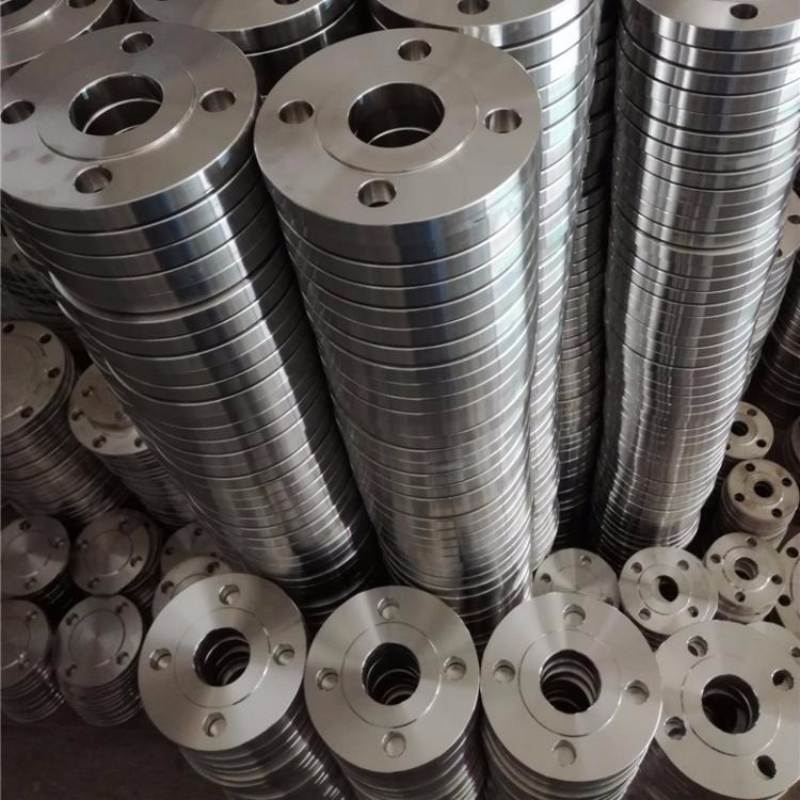

Product Warehouse |
|
|
|
|
|
|
|
|
Applications

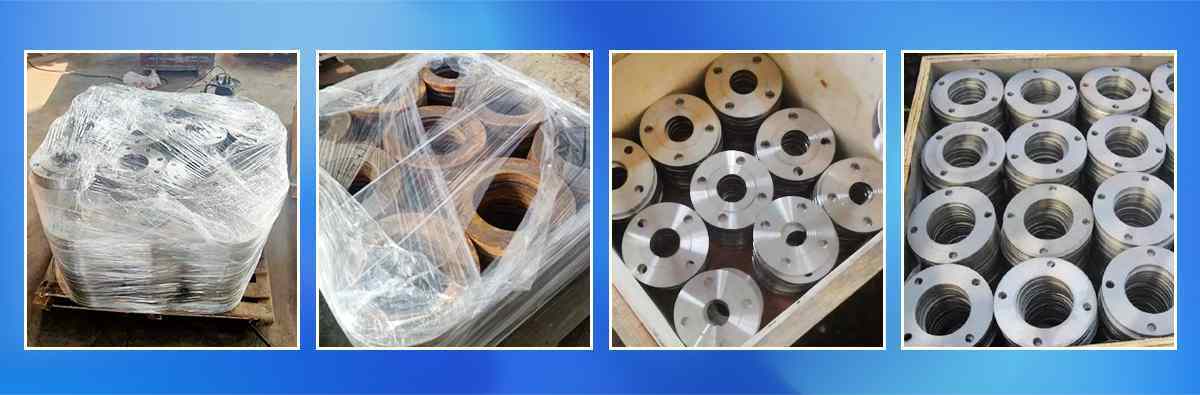

Product Packaging

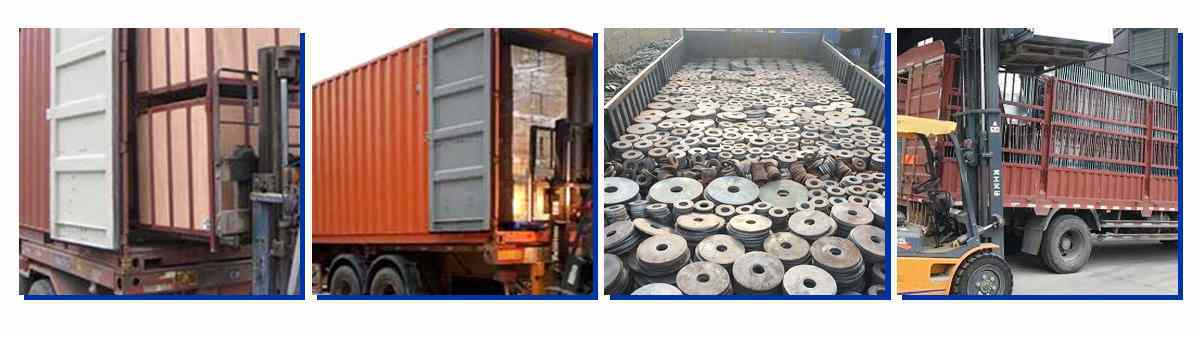

Product Transportation
FAQ
How to contact us?
If you are interested in our products, please feel free to contact us at any time. You can contact our product manager through email or the message board at the bottom of the page.
What are your main products?
Our main products are stainless steel products, galvanized steel products, aluminum profiles and lead products. In addition, we also have steel pipes, steel plates and other related steel products.
Do you provide customized product services?
Of course, our professional R&D team can design and produce the products you need according to your specifications and drawings. For example: special size, special control, OEM, etc.
How long will it take for me to get the price?
Please provide product specifications such as material, size, quantity and other requirements. We usually quote within 6 hours, and steel prices fluctuate with the market every day. Our prices are very competitive because we have a stable supply chain. If you would like to get a price as soon as possible, please call us or let us know by email so that we can prioritize your inquiry.
Are you a manufacturer?
Our main products are stainless steel products and galvanized steel products. Our own factory, coupled with our many years of experience in the domestic steel market and long-term cooperation with upstream and downstream suppliers, stable prices, stable quality and stable supply capabilities allow us to have great advantages in stainless steel and galvanized products. At the same time we also have product resources of carbon steel products and color-coated coils, I believe this will also make you satisfied.
Can we visit your factory?
Of course, we welcome you to visit our factory on site or visit our production line through online video to understand our strength and quality. We will arrange a professional team to serve you.You just need to send your itinerary and leave the rest to us.
