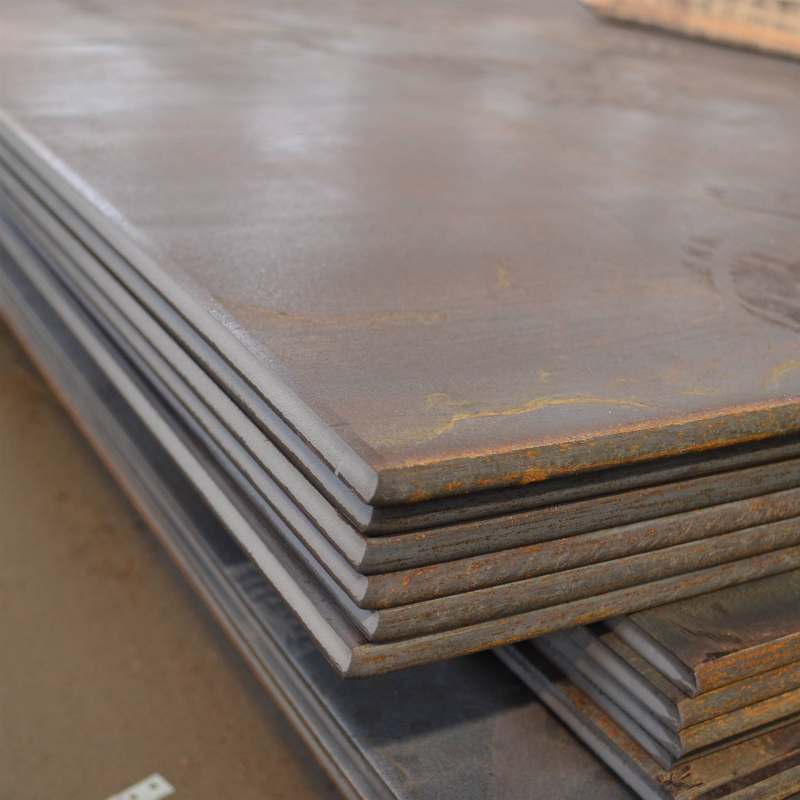

Carbon steel plate is a rectangular plate made of non-alloy material mainly composed of iron and carbon. In addition to carbon, it also contains a small amount of silicon, manganese, sulfur, phosphorus and other elements. The higher the carbon content, the better the hardness and the better the strength. Due to its good mechanical properties and plasticity, it is widely used in various fields.
Product Parameters
|
Product |
Carbon steel plate |
|
|
Executive |
Chinese |
GB/1591-2018,GB713-1997,GB3274-88,GB/T16270-2009.ect |
|
American |
ASTM A36, ASTM A283 Grade A, B,C,ASTM A516, ASTM A537, ASTMA573,ASTM A572,ASTM A737.ect | |
|
Europe |
EN10025,EN10083-2,DIN17100.ect | |
|
Japanese |
JIS G3101, JIS G3106,JIS G4051, BS4360,BS 1501-161/151-430a.ect | |
|
Russia |
GOST 8787-68,GOST14637-89.ect | |
|
Technique |
Cold rolled; Hot rolled; Hot forming; Cold forming; Heat treatment; |
|
|
Added |
Machinability; Welding; Cutting; Perforating; Bending; Punching; Hot dip galvanized, |
|
|
Thickness |
0.3-4mm cold rolled;3-300mm hot rolled;Customization according to customers'requirements |
|
|
Width |
600mm,1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm |
|
|
Length |
2000mm,2438mm,3000mm,5800mm，6000mmCustomization according to customers'requirements |
|
|
Packing |
Waterproof paper/ Wooden Pallet / Wooden box / Plastic Cloth Wraps / lron steel stripetc |
|
|
Application |
Mild steel ls commonly used structurally in buildings and bridges, axles, |
|
Carbon Steel Plate Description
Carbon steel includes four grades: A, C, D, and E, of which the thickness of grade C can reach 4 inches and the thickness of grade E can reach 6 inches. ASTM A633 steel specification is based on the standard specification for standardized high-strength low-alloy structural steel plate, which requires high notch toughness under low temperature conditions.
Product Parameters
|
Product Name |
Carbon Steel Plate |
|
Production Process |
Hot Rolling, Cold Rolling |
|
Material Standards |
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
|
Width |
100mm-3000mm |
|
Length |
1m-12m, or Customized Size |
|
Thickness |
0.1mm-400mm |
|
Delivery Conditions |
Rolling, Annealing, Quenching, Tempered or Standard |
|
Surface Process |
Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
|
A633 |
C |
Mn |
P |
S |
Si |
V |
Nb |
|
GradeA |
≤ 0.18 |
1.00-0.35 |
0.035 |
0.04 |
0.15-0.50 |
- |
≤ 0.05 |
|
GradeC |
≤ 0.20 |
0.15-0.50 |
0.035 |
0.04 |
0.15-0.50 |
- |
0.01-0.05 |
|
GradeD |
≤ 0.20 |
0.70-1.35 |
0.035 |
0.04 |
0.15-0.50 |
- |
- |
|
GradeE |
≤ 0.22 |
1.15-1.50 |
0.035 |
0.04 |
0.15-0.50 |
0.04-0.11 |
- |
Mechanical Properties
|
A633 |
Yield Strength |
Tensile Strength |
Elongation 200mm, min% |
Elongation 50mm, min% |
||||
|
65mm |
65-100mm |
100-150mm |
65mm |
65-100mm |
100-150mm |
|||
|
Grade A |
290 |
290 |
- |
430-570 |
430-570 |
- |
18 |
23 |
|
Grade C&D |
345 |
315 |
- |
485-620 |
450-590 |
- |
18 |
23 |
|
Grade E |
415 |
415 |
380 |
550-690 |
550-690 |
515-655 |
18 |
23 |
Physical Performance
|
Physical Performance |
Metric |
Imperial |
|
Density |
7.75g/cc |
0.280 lb/in³ |
Product Specifications
| Specifications（mm） | Thickness（mm） |
| 1260*2440 | 1.5 |
| 1260*2440 | 2. 0 |
| 1260*6000 | 1.8 |
| 1260*6000 | 2. 0 |
| 1260*6000 | 2. 5 |
| 1260*6000 | 2. 75 |
| 1260*6000 | 2. 95 |
| 1260*6000 | 3. 5 |
| 1260*6000 | 3. 75 |
| 1260*6000 | 3. 95 |
| 1260*6000 | 4. 5 |
| 1260*6000 | 4. 75 |
| 1260*6000 | 4. 95 |
| 1260*6000 | 5. 5 |
| 1260*6000 | 5. 75 |
| 1260*6000 | 5. 75 |
| 1510*6000 | 8. 0 |
| 1510*6000 | 10 |
| 1510*6000 | 12 |
| 1510*6000 | 15 |
| The above are the general items, for the special types, we can also meet your needs. | |
Scope of Application
ASTM A633 steel plate is mainly used in petroleum, chemical, power station, boiler and other industries, for the production of reactors, heat exchangers, separators, spherical tanks, oil and gas pipelines, liquefied gas tanks, shell nuclear reactor pressure, boiler drums, liquefied petroleum gas cylinders, high pressure water pipes, water turbines and other equipment and components.

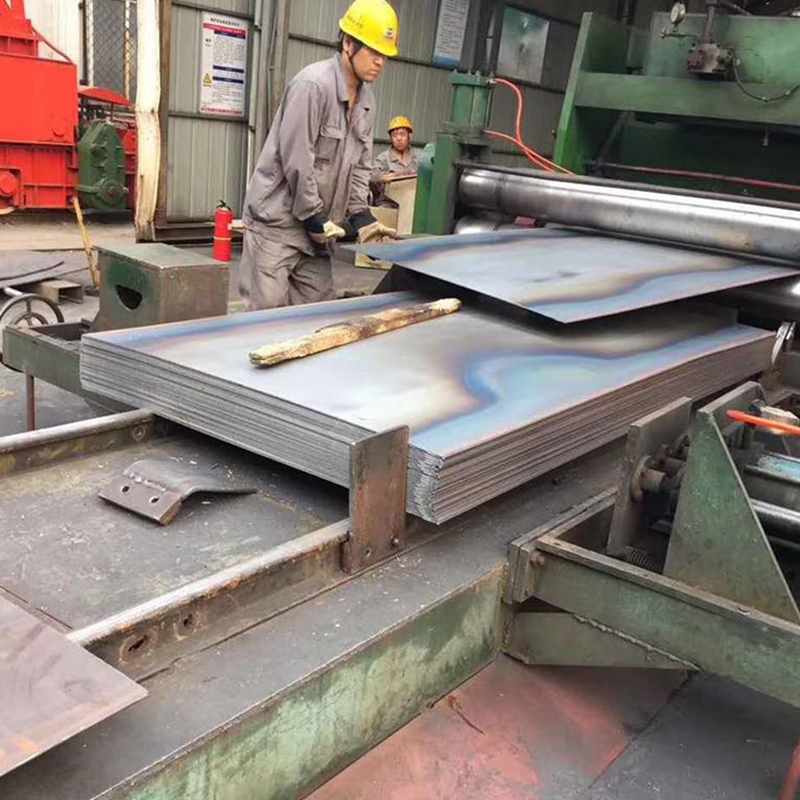

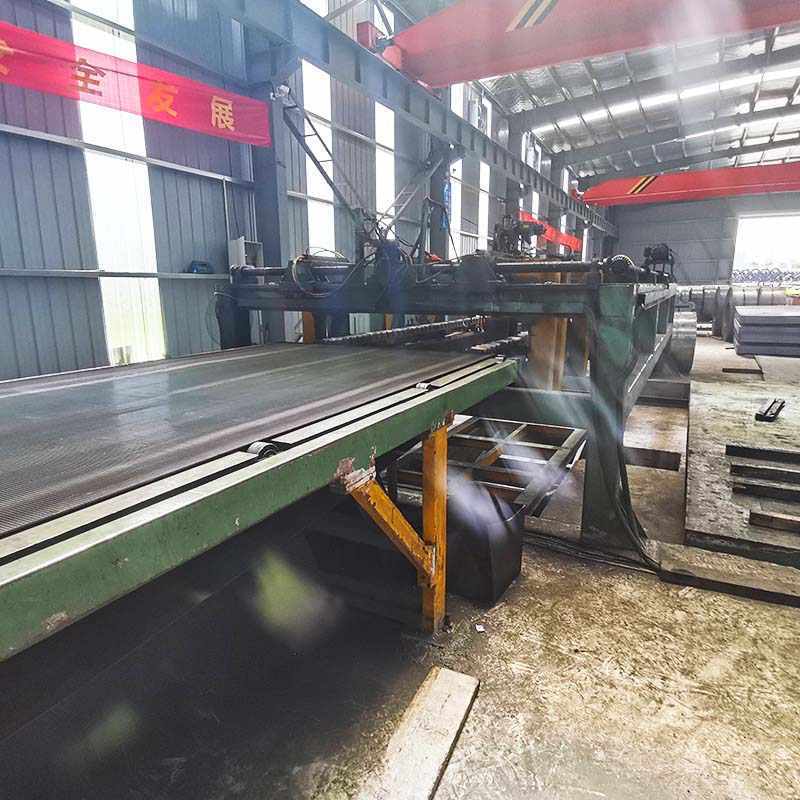

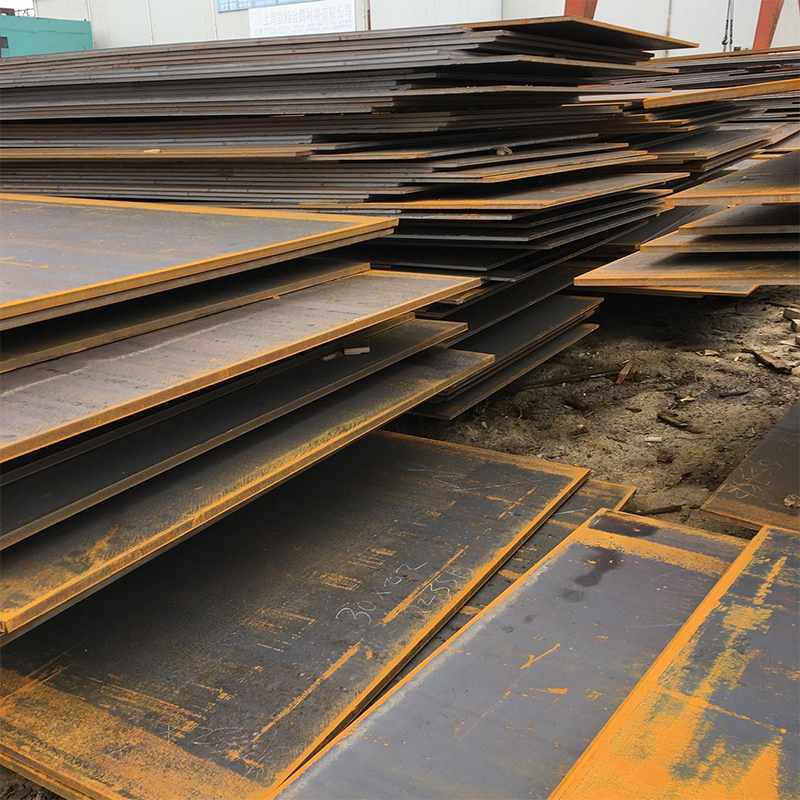

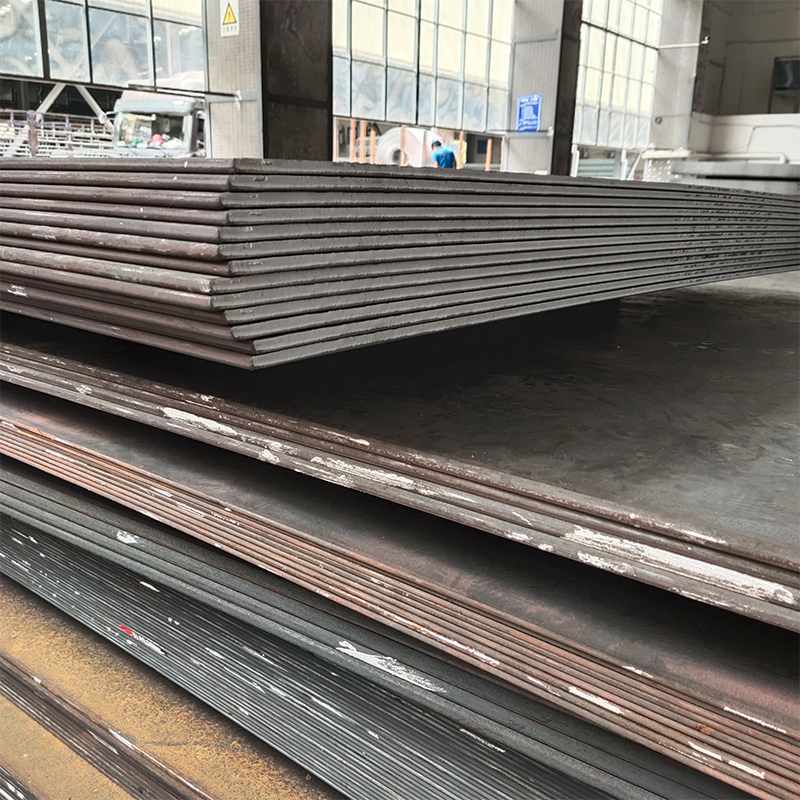

| Product Details | Product Production | Product Warehouse |
 |
 |
 |
 |
 |
 |
Applications
In the field of construction, it is used to manufacture structural support materials, such as beams, columns, bridges, building skeletons and high-rise buildings; in the field of machinery manufacturing, it is used to manufacture various machine tools, punches, presses, loaders and other mechanical equipment; in automobiles, It is used in the shipbuilding industry to manufacture various components, such as chassis, shell, deck, etc.

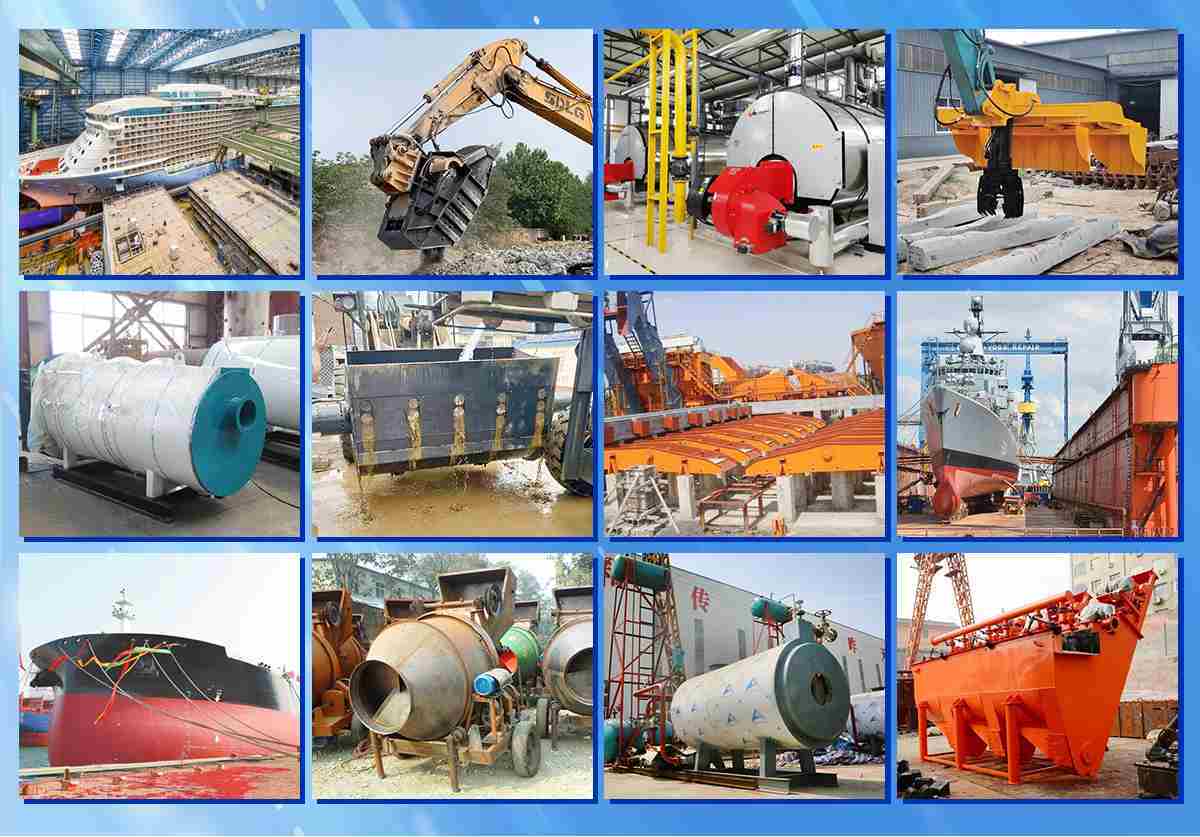

Project Cases

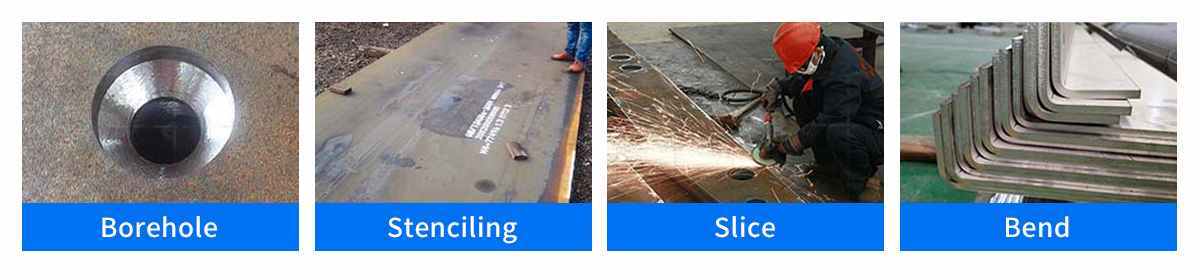

Additional Processing Technology
Carbon steel plates can be treated with additional processes such as cutting, welding, drilling, labeling, oiling, and beveling.

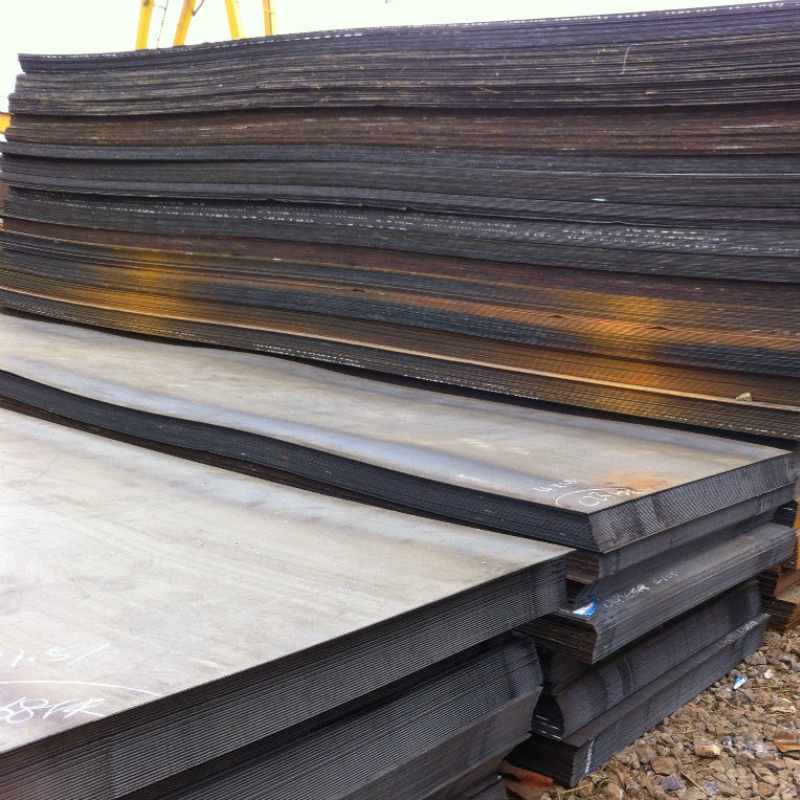

Product Packaging

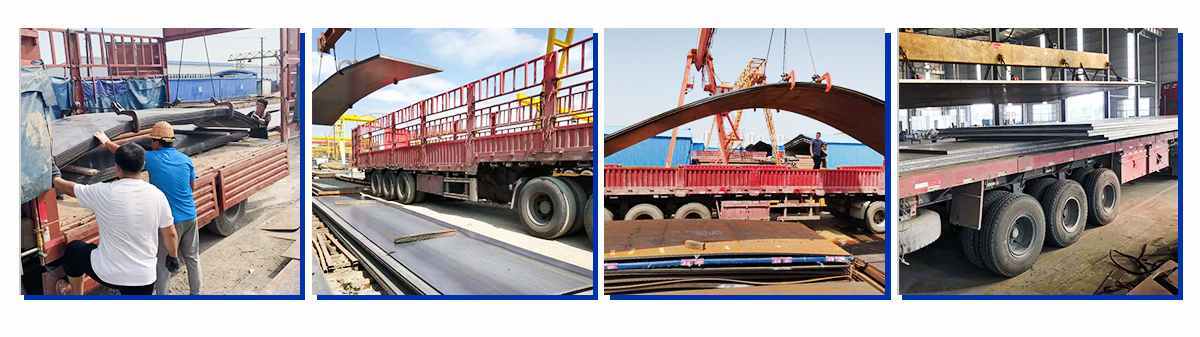

Product Transportation
| China | America | Germany | Japan | France | Britain | International |
| GB3077 | AlSI | DIN | JIS | NE | BS | ISO |
| 20Mn2 | 1320 1221 | 20Mn5 | SMn21 | 20M5 | 150M19 | - |
| 30Mn2 | 1330 | 30Mn5 | SMn24 | 32M5 | 150M28 | - |
| 35Mn2 | 1335 | 36Mn5 | SMnl | 35M5 | 150M36 | - |
| 40Mn2 | 1340 1341 | - | SMn2 | 40M5 | - | - |
| 45Mn2 | 1345 | 46Mn7 | SMn3 | 45M5 | - | - |
| 50Mn2 | 1052 | 50Mn7 | - | 55M5 | - | - |
| 20MnV | - | 20MnV6 | - | - | - | |
| 30Mn2MoW | - | -- | - | - | - | |
| 27SiMn | - | 27MnSi5 | - | - | - | |
| 35SiMn | - | 37MnSi5 | - | 38MS5 | - | - |
| 42SiMn | - | 38MnSi4 46MnSi4 | - | 38MS5 | - | - |
| 20SiMn2MoV | - | - | - | - | - | - |
| 25SiMn2MoV | - | - | - | - | - | - |
| 37SiMn2MoV | - | - | - | - | - | - |
| 40B | 14B35 | 35B2 | - | - | - | - |
| 45B | 50B46H | 45B2 | - | - | - | - |
| 50B | 14B50 | - | - | - | - | - |
| 4OM∏B | 15B41 | - | - | - | - | - |
| 45MnB | 15B48 50B44 | - | - | - | - | - |
| 20Mn2B | - | - | - | - | - | - |
| 20MnMoB | 80B20 | - | - | - | - | - |
| 15MnVB | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| 20MnVB | - | - | - | - | - | - |
| 40MnVB | - | - | - | - | - | - |
| 20MnTiB | - | - | - | - | - | - |
| 25MnTiBRE | - | - | - | - | - | - |
| 2OSiMnVB | - | - | - | - | - | - |
| 15Cr | 5015 5115 | 15Cr3 | SCr21 | 12C3 | 523A14 523M15 | - |
| 15CrA | - | - | - | - | - | - |
| 20Cr | 5120 | 20Cr4 | SCr22 | 18C3 18C4 | 527A19 527M20 | 683/11 20Cr4 20CrS4 |
| 30Cr | 5130 | 28Cr4 | SCr2 | 28C4 32C4 | 530A30 530A32 | - |
| 35Cr | 5135 | 34Cr4 37Cr4 | SCr3 | 38C4 | 530A36 | 683/8 3、 3a、 3b |
| 40Cr | 5140 | 38Cr4 41Cr4 | SCr4 | 42C4 | 530A40 530M40 | 683/1 4、 4a^ 4b |
| 45Cr | 5145 | 42Cr4 | SCR5 | 45C4 | - | - |
| 50Cr | 5150 5152 | - | - | 50C4 | En48 | - |
| 38CrSi | - | - | - | - | - | - |
| 12CrMo | 4119 | 13CrMo44 | - | 12CD4 15CD2 | - | - |
| 15CrMo | ASTM A-387Gr. B | 15CrMo5 16CrMo44 | SCM21 | 15CD4. 05 | BS1653 | - |
| 20CrMo | 4118 | 20CrMo5 22CrMo4 | SCM22 | 18CD4 20CD4 | CDS 12 CDSllO | - |
| 30CrMo | 4130 | 25CrMo4 | SCM2 | 30CD4 | CDS 13 | - |
| 30CrMoA | - | 32CrMol2 3ICRMo12 | - | - | - | - |
| 35CrMo | 4135 4137 | 34CrMo4 35CrMo4 | SCM3 | 35CD4 | 78A37 | 683/1 C35ea C35eb |
| 42CrMo | 4140 4142 | 41CrMo4 42CrMo4 | SCM4 | 40CD4 42CD4 | 708M40 708A42 709M40 | 683/1 3 |
| 12CrMoV | - | - | - | - | - | - |
| 35CrMoV | - | 35CrMoV5 | - | - | - | - |
| 12CrlMoV | - | 13CrMoV4.2 | - | - | - | - |
| 25Cr2MoVA | - | 24CrMoV5.5 | - | - | - | - |
| 25Cr2MolVA | - | - | - | - | - | - |
| 20CR3MoWVA | - | 21CrVMoW12 | - | - | - | - |
| 38CrMoΛl | 6370 (ΛMS) | 34CrAlMo5 41CrAlMo7 | SACM645 | 40CAD6.12 | 905M39 | 683/10 41CrAlMo74 |
| 20CrV | 6120 | 22CrV4 | - | 22CrV4 | - | - |
| 40CrV | 6140 | 42CrV | - | 42CrV4 | - | - |
| 50CrVA | 6150 | 50CrV4 | SUPlO | 50CV4 | 735A50 | - |
| 15CrMn | - | 16MnCr5 | - | 16MC5 | - | - |
| 20CrMn | 5120 | 20MnCr5 | SMC21 | 20MC5 | - | - |
| 40CrMn | 5140 | - | SMC3 | - | - | - |
| 20CrMnSi | - | - | - | - | - | |
| 25CrMnSi | - | - | SMKl | - | - | - |
| 30CrMnSi | - | - | - | - | - | - |
| 30CrMnSiA | - | - | - | - | - | - |
| 35CrMnSiA | - | - | SMK2 | - | - | - |
| 20CrMnMo | 4119 | 20CrMo5 | SCM23 | - | - | - |
| 40CrMnMo | 4140 | - | - | - | - | - |
| 20CrMnTi | - | - | SMK22 | - | - | - |
| 30CrMnTi | - | 30MnCrTi4 | - | - | - | - |
| 20CrNi | 3120 | 20NiCr6 | - | 20NC6 | 637A16 637M17 | - |
| 40CrNi | 3140 | 46NiCr6 | SNCl | 35NC6 | 640A35 640M40 | - |
| 45CrNi | 3145 | 45NiCr6 | - | - | - | - |
| 50CrNi | 3150 | - | - | - | - | - |
| 12CrNi2 | 3115 | 14NiCrlO | SNC21 | IONCll 14NC11 | - | - |
| 12CrNi3 | 3310 | 13NiCrl2 | SNC22 | 10NC12 14NC12 | 655A12 655M13 | - |
| 20CrNi3 | - | 22NiCrl4 | - | 20NC11 | - | - |
| 30CrNi3 | - | 28NiCrlO 31NiCrl4 | SNC2 | 30NC11 30NC12 | - | - |
| 37CrNi3 | - | 35NiCrl8 | SNC3 | 35NC15 | - | - |
| 12Cr2Ni4 | E3310 | 14NiCrl8 | - | 12NC15 | - | - |
| 20Cr2Ni4 | E3316 | 22NiCrl4 | - | 20NC14 | 659A15 659M15 | - |
| 20CrNiMo | 8620 8720 | 20NiCrMo2 21NiCrMo2 | - | 20NCD2 | 805A20 805M20 | - |
| 40CrNiMoA | 4340 9840 | 36NiCrMo4 40NiCrMo6 | SNCM8 | 35NCD5 40NCD3 | 817M40 816M40 | - |
| 45CrNiMoVA | 4437 | - | SNCM9 | - | - | - |
| 18Cr2Ni4WA | ||||||
| 25Cr2Ni4WA |
