Color Coated Galvalume Steel Sheet PPGL Description

Color-coated galvanized sheet PPGL is a hot-dip aluminum-zinc plate as the substrate, after surface pretreatment, roller coating method, coated with one or more layers of liquid coating, after baking and cooling, the surface is rich in color, good weather resistance, superior processing performance.
Color coated board can be divided into ordinary PE, high corrosion resistant HDP, high corrosion resistant silicon modified polyester SMP, high corrosion resistant fluorocarbon PVDF, super corrosion resistant nano fluorocarbon PVDF, aluminum magnesium manganese color coated board, printing color coated board, etc.
The varieties that can be produced are: ordinary building materials board, purification board, cold storage board, solar panel, door and window profile, household appliance board, writing board, printing board, reticulated suede color coating, embossed printing, aluminum magnesium manganese color coating board, high weather resistance, silicon modification, self-cleaning board, heat reflection board, antibacterial board, acid and alkali resistant color coating board, etc., which can meet customer requirements of different industries and provide technical support and solutions.

Product Parameters

Product Name	Color Coated Galvalume Steel Sheet PPGL
Type	Steel Coil
Thickness	0.12~2.0 mm
Width	600 mm~1500 mm
Zn Coating	0.13-0.8 mm is 30-150 g/㎡;  0.8-1.5 mm is 30-180 g/㎡; 1.5-6.0 mm is 30-275 g/㎡
Coil Weight	3-6mt
Colors	RAL Colors or as customer requirements
Surface treatment	Top paint: FVDF, HDP, SMP, PE, PU
	Prime paint: polyurethane, epoxy, PE
	Back paint: epoxy, modified polyester
Standard	ASTM, JIS, EN
Certificate	ISO, CE
Delivery times	8-15 days after the receipt of deposit
Package	tied up with steel strips and wrapped with water proof paper
Loading port	Qingdao, China
Application	Widely used in roofing sheet, window-shades, car ceiling, the shell of the car, air conditioner, outer shell of water machine etc.

Product Specifications

Type	Thickness(mm)	Width(mm)
		1219	1500	1800	2000
Cold Rolled	0.3	√	√	√	√
	0.4	√	√	√	√
	0.5	√	√	√	√
	0.6	√	√	√	√
	0.7	√	√	√	√
	0.8	√	√	√	√
	0.9	√	√	√	√
	1.0	√	√	√	√
	1.2	√	√	√	√
	1.5	√	√	√	√
	1.8	√	√	√	√
	2.0	√	√	√	√
	2.5	√	√	√	√
	3.0	√	√	√	√
	4.0	√	√	√	√
	5.0	√	√	√	√
	6.0	√	√	√	√
Hot Rolled	4.0	√	√	√	√
	5.0	√	√	√	√
	6.0	√	√	√	√
	8.0	√	√	√	√
	10.0	√	√	√	√
	12.0	√	√	√	√
	14.0	√	√	√	√
	16.0	√	√	√	√

Color Selection

We provide many colors to choose from, the following are common colors, if you like other colors or patterns, please send us the RAL color code.



Advantages of Color Coated Plate

Custom Colors
You can choose any RAL color, as well as customize the pattern according to your needs. The beautiful surface makes the color coated board decorative. So it can be directly used in many fields.
Tough Soating
Color coated steel plate including PPGL plate PPGI steel, the use of continuous coil coating, the surface luster bright, no cracking, no peeling. In addition, it can keep the color for at least 10 years.
Excellent Mechanical Properties
The color coated plate retains the mechanical properties of the base metal, such as tensile strength. In addition, the application of the coating can protect the surface from rust, thereby extending its service life. Studies have shown that the service life of color-coated steel sheets is 50% longer than that of galvanized steel sheets.
Easy to Use
Different from the coil, the color coated plate is a kind of finished product. This means that it can be directly used in many industries. Considering its light weight, it is easy to carry and install. In addition, due to its aesthetic appearance, no additional decoration is required. Also, less maintenance is required during the service life.



Coating Type

In the coil coating, the durability of the role is the resin and pigment, the most commonly used finish polyester, silicon modified polyester, high durability polyester and polyvinylidene fluoride.
Polyester PE
Good adhesion, rich color, wide range in formability and outdoor durability, medium chemical resistance, low cost.
Silicon Modified Polyester SMP
The hardness, abrasion resistance and heat resistance of the coating film are good; as well as good external durability and powder resistance, gloss retention, general flexibility and medium cost.
High Durability Polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, dirt resistance, limited color, and high cost.

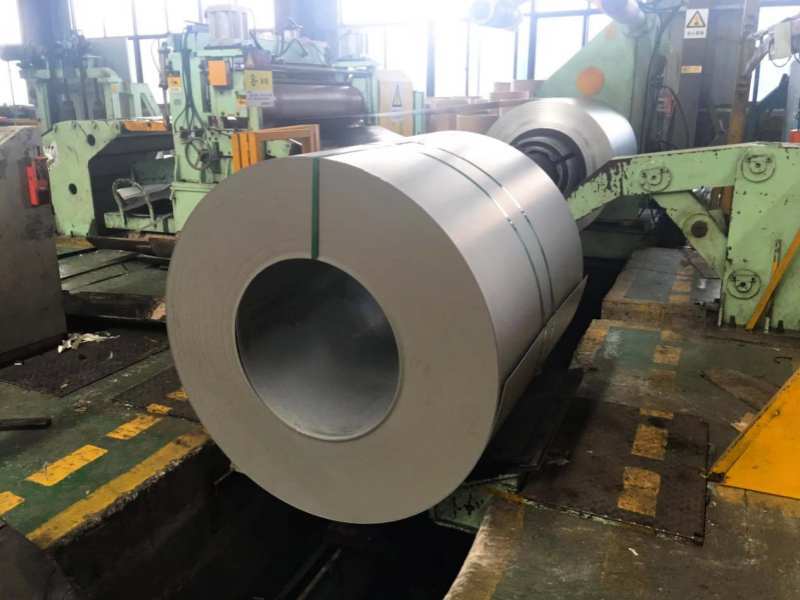

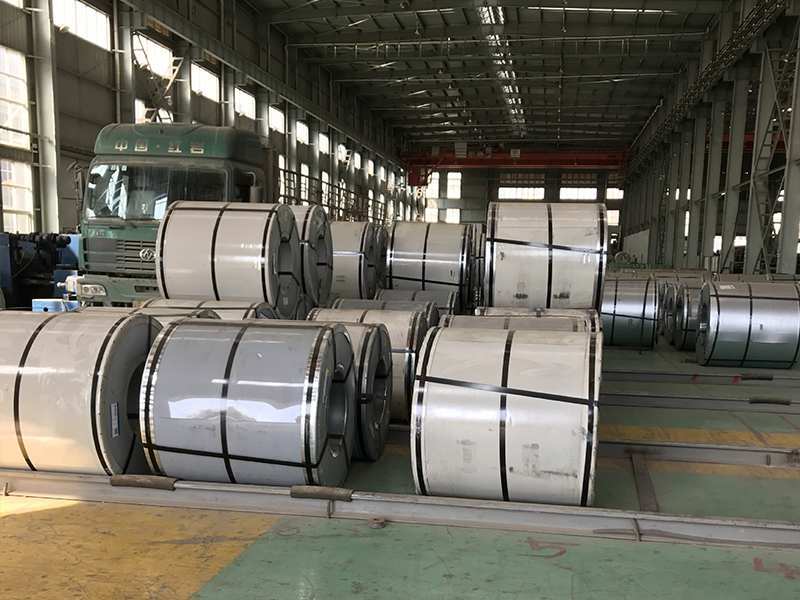

Product Details	Product Production	Product Warehouse

Applications
PPGI Purpose:
1. Construction field: Color coated steel coils are widely used in fields such as building roofs, wall panels, doors and windows, roof trusses, partitions, and ceilings. Color coated steel coils not only have aesthetic properties, but also have good waterproof, fireproof, and thermal insulation properties, making them an excellent building material.
2. Home appliance field: Color coated steel coils are widely used in making home appliance shells, such as refrigerators, air conditioners, washing machines, microwaves, and electric ovens. Color coated steel coils have characteristics such as wear resistance, corrosion resistance, easy cleaning, and aesthetics, which can meet the appearance and performance requirements of the home appliance industry.
3. Transportation field: Color coated steel coils can be used to make components such as body shells, roof, chassis, and frame. Color coated steel coils have the characteristics of lightweight, high strength, corrosion resistance, wear resistance, and aesthetics, which can improve the safety and aesthetics of transportation vehicles.
4. Furniture field: Color coated steel coils can be used to make furniture such as office furniture, kitchen furniture, bookshelves, and wardrobes. Color coated steel coils have the characteristics of aesthetics, wear resistance, easy cleaning, and corrosion resistance, which can meet the requirements of the furniture industry for material appearance and performance.
5. Electronic equipment field: Color coated steel coils can be used to make electronic equipment casings such as television casings, audio casings, and computer casings. Color coated steel coils have the characteristics of aesthetics, wear resistance, corrosion resistance, and electromagnetic interference resistance, which can improve the safety and aesthetics of electronic equipment.

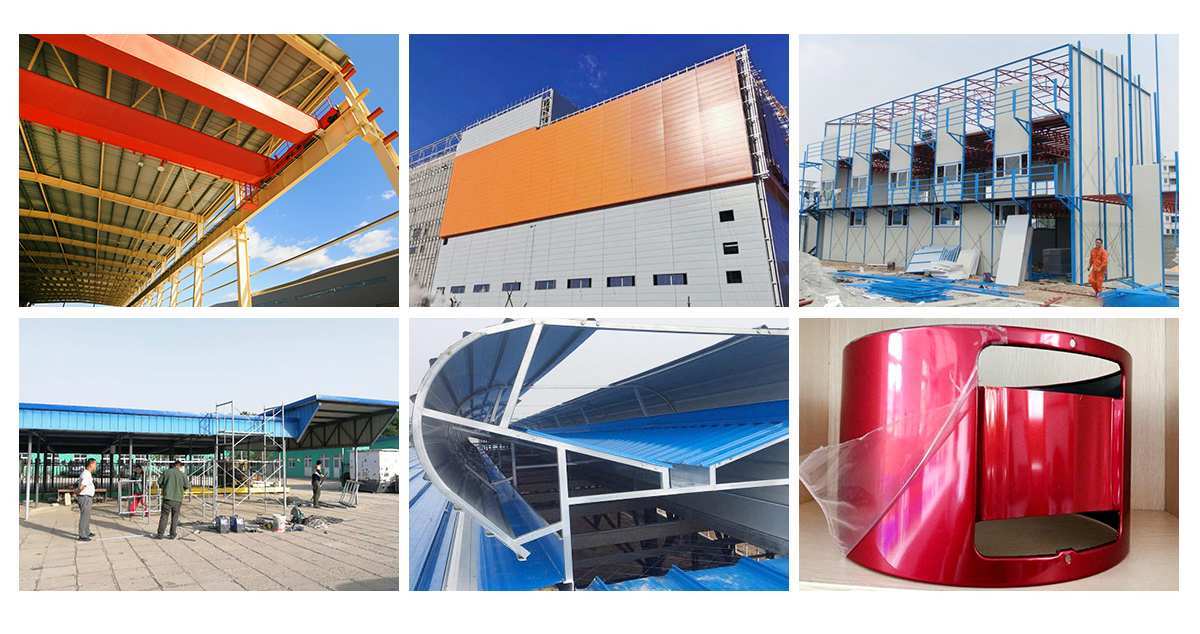

Project Cases

Additional Processing Technology
PPGI can customize patterns/colors according to customer requirements, with color codes referring to the Raul color card

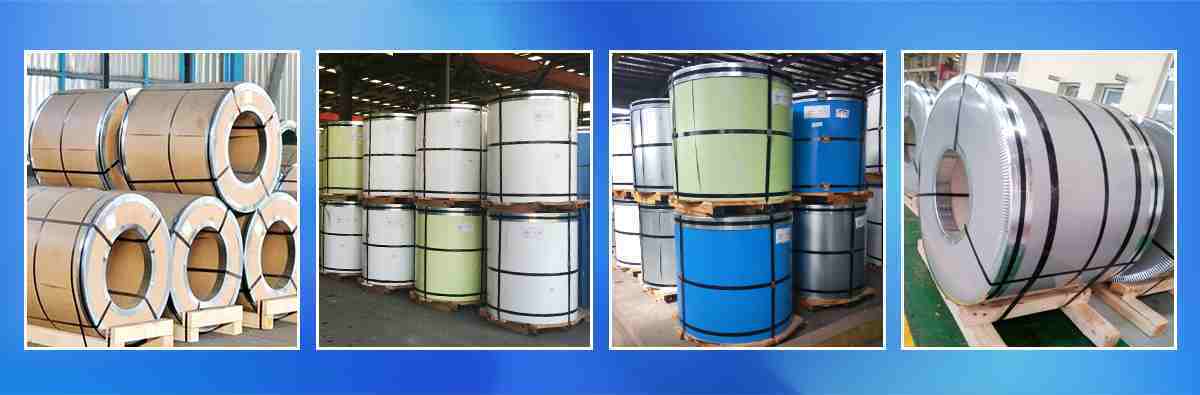

Product Packaging

Product Transportation
